SharePoint RAG App

I wanted to learn more about using LLM to query documents from SharePoint, so I decided to build a web app and deploy it on the cloud. Here’s how I did it.

App

GitHub

Demo

Tech Stack

• Frontend: Streamlit
• Database: ChromaDB
• Storage: Microsoft SharePoint
• Cloud: Streamlit community cloud
• LLM: OpenAI’s gpt-4o-mini, Google’s Gemini 1.5 Flash-8B
• Text Embeddings: OpenAI’s text-embedding-3-large, Google’s embedding-001
• Tools: LangChain

The technology stack was carefully selected to balance functionality, ease of development, and cost efficiency. Streamlit was chosen as the frontend framework due to its rapid prototyping capabilities and Python-native development environment, making it ideal for data science applications. For vector storage, ChromaDB was selected for its seamless integration with LangChain and robust vector search capabilities. Microsoft SharePoint serves as the document storage solution, aligning with the project’s core objective of building an enterprise document query system. The application is hosted on Streamlit Community Cloud, providing a cost-effective deployment solution with built-in CI/CD capabilities. For the language models, two options were implemented: OpenAI’s GPT, chosen for its proven performance and extensive documentation, and Google’s Gemini, selected for its competitive performance and free API access during development. The entire application is orchestrated using LangChain, which provides a comprehensive framework for building RAG applications while abstracting away much of the complexity in connecting various components.

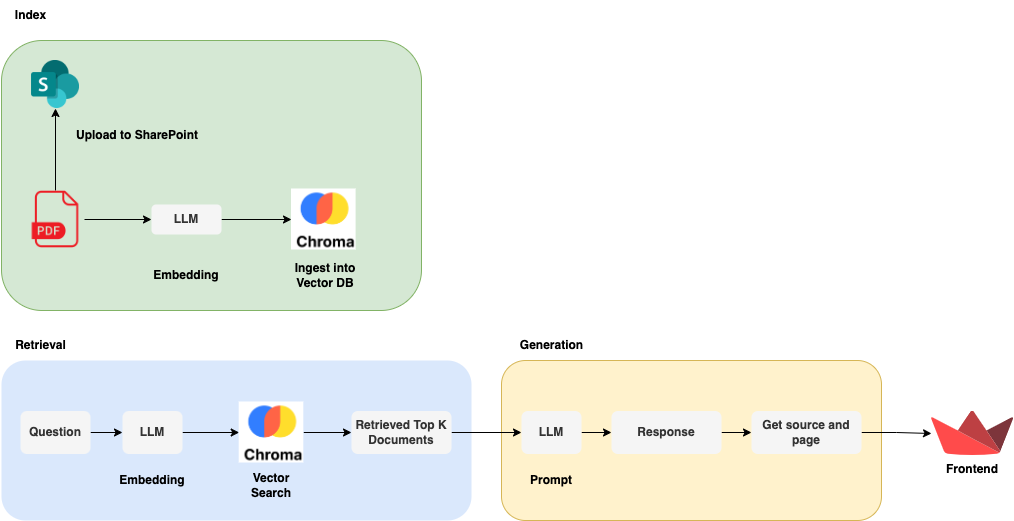

Architecture

Step 1: Setting up SharePoint for Document Storage

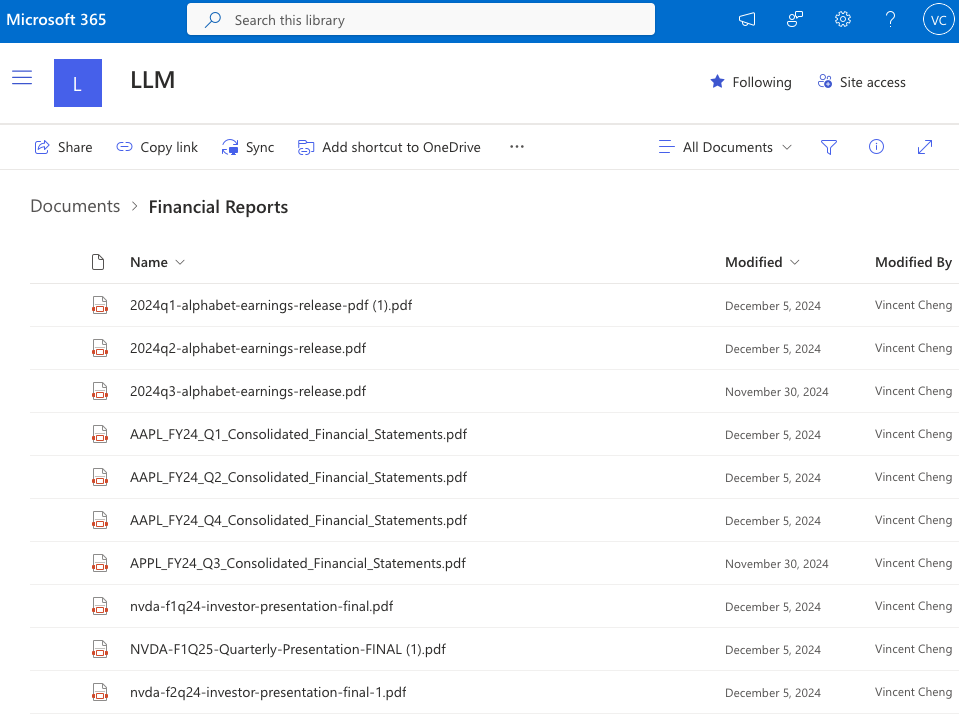

I started by signing up for SharePoint (Plan 1) and provisioning my SharePoint instance. Then, I uploaded Alphabet, Apple and NVIDA financial reports to the SharePoint folder.

Step 2: Indexing PDF documents

Indexing documents is the process of converting the documents into vector embeddings and storing them in a vector database. Vector databases enable similarity searches (such as cosine similarity) to find relevant documents.

Creating document loader component

I developed the document loader component here to load the PDF documents in SharePoint.

This component requires 3 parameters O365_CLIENT_ID, O365_CLIENT_SECRET, O365_TOKEN. I followed this documentation on how to get these parameters values. For the O365_TOKEN, I converted the content in o365_token.txt into TOML format. I copied the content in TOML format and pasted into Streamlit secrets in the format as shown below.

[O365_TOKEN]
token_type = ...
scope = ...
expires_in = ...
...

There are 2 functions in this component, init_sharepoint_loader and load_documents.

• init_sharepoint_loader function is used to initialize SharePointLoader class
• load_documents is used to load the documents from SharePoint

init_sharepoint_loader function requires 2 parameters DOCUMENT_LIBRARY_ID and FOLDER_ID which I got it from this documentation. This function also read the O365_TOKEN in Streamlit secrets, convert it to JSON and save the JSON at this directory Path.home() / ".credentials". This JSON will be used as token to initialize the SharePointLoader.

Please ensure that o365_token.txt and the .credentials folder are added to your .gitignore file to prevent accidental leakage of sensitive tokens.

directory_path = Path.home() / ".credentials"

# Check if dir exist
if not os.path.exists(directory_path):
  os.makedirs(directory_path)

# Write O365 token into text file
with open(directory_path / "o365_token.txt", 'w') as f:
  json.dump(O365_TOKEN, f)

# Initialize document loader
loader = SharePointLoader(
  document_library_id=document_library_id,
  auth_with_token=True,
  folder_id=folder_id
)

Creating vector store component

Next, I developed the vector store component here to create the vector database.

There are 6 functions in this component, initialize_vector_store, add_items, retrieve, create_vector_store, get_collection_name, and check_vector_store_exist.

• initialize_vector_store is used to initialize Chroma database instance with specified collection, embeddings and directory
• add_items is used to add documents into the vector database
• retrieve is used to retrieve top k documents that are relevant to the question from the vector database
• create_vector_store is used to load the documents from SharePoint using document loader component from the previous step and add them using add_items function to the vector database
• get_collection_name is used to specify the collection name based on user selected model
• check_vector_store_exist is used to check if ChromaDB exist on disk. If it is not, this function will call create_vector_store

Implementation

I added check_vector_store_exist function at the Home page to create the vector database if it doesn’t exist.

Step 3: Retrieving documents

Retrieving documents is the process of retrieving top k relevant documents based on user question.

Implementation

I implemented this step at the retrieve function of vector store component.

Step 4: Generating answers

Generating answers is the process of sending the LLM relevant documents to generate response to user’s question.

Creating generator component

There is only 1 function in this component, generate. This component will

1. Initialize the LLM based on user selected model.
2. Pull the prompt template from Langchain.
3. Post-processing retrieved documents to remove duplicate.
4. Generate the prompt with user’s question and retrieved documents as context.
5. Invoke the LLM with the generated prompt.
6. Return the answer and the retrieved documents as source.

Step 5: Creating RAG

I utilized LangGraph to orchestrate the retrieval and generation state. While a linear chain would suffice for this MVP, LangGraph provides the infrastructure to easily add cyclic loops (e.g. query rewriting or self-correction) in future iterations.

Creating graph component

There is only 1 function in this component, generate. This component will initialize the RAG with the sequence of retrieve then generate.

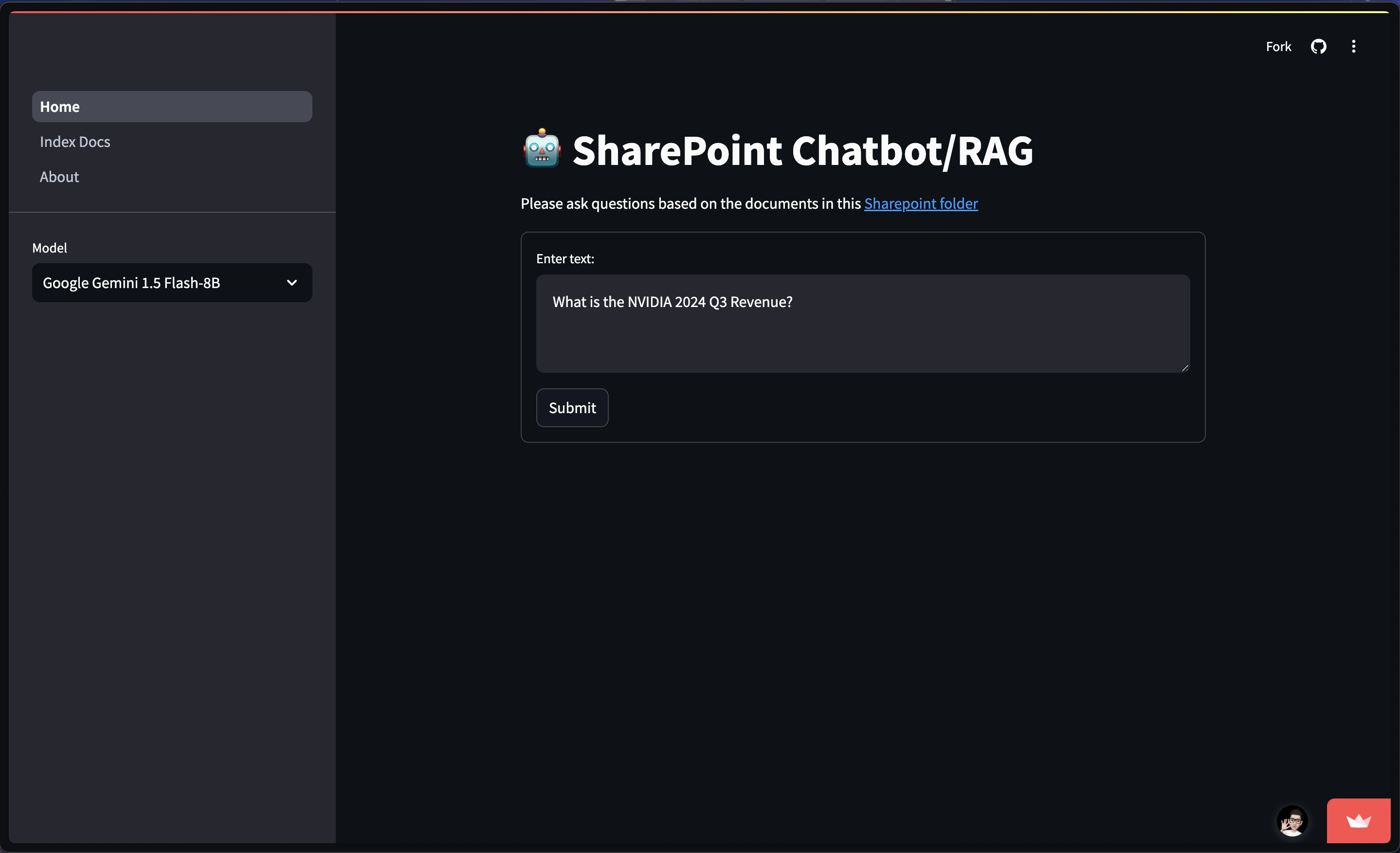

Step 6: Creating user interface

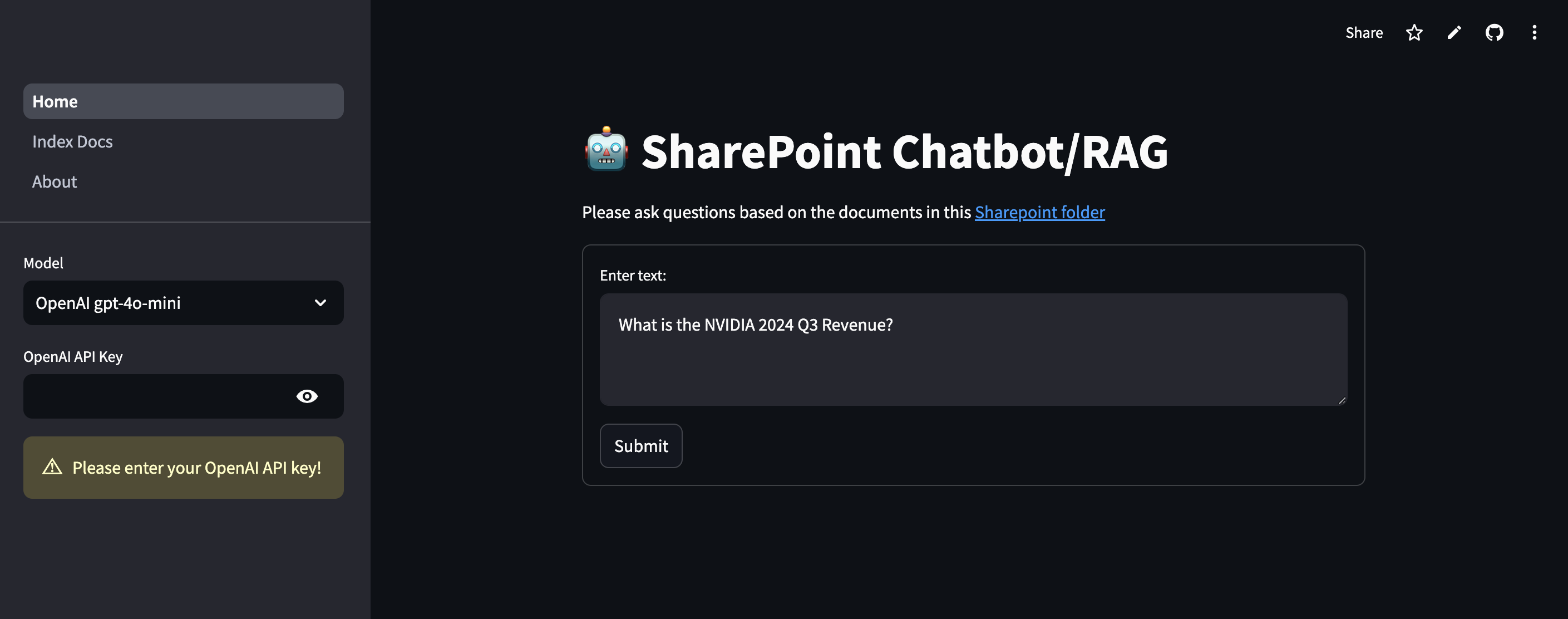

There are 3 pages, Home, Index Docs, and About. Home is the main page where user interacts. Index Docs is the page where user can manually index the documents. About is the documentation page. I added the Model dropdown at the sidebar. If users choose Google Gemini model, they will be using my API key as it is free for now. However, if they choose OpenAI model, they will have to provide their own API key.

At the Home page, I added the code to build the graph and check vector database exist before loading the remaining user interface components.

graph = build_graph()
check_vector_store_exist()

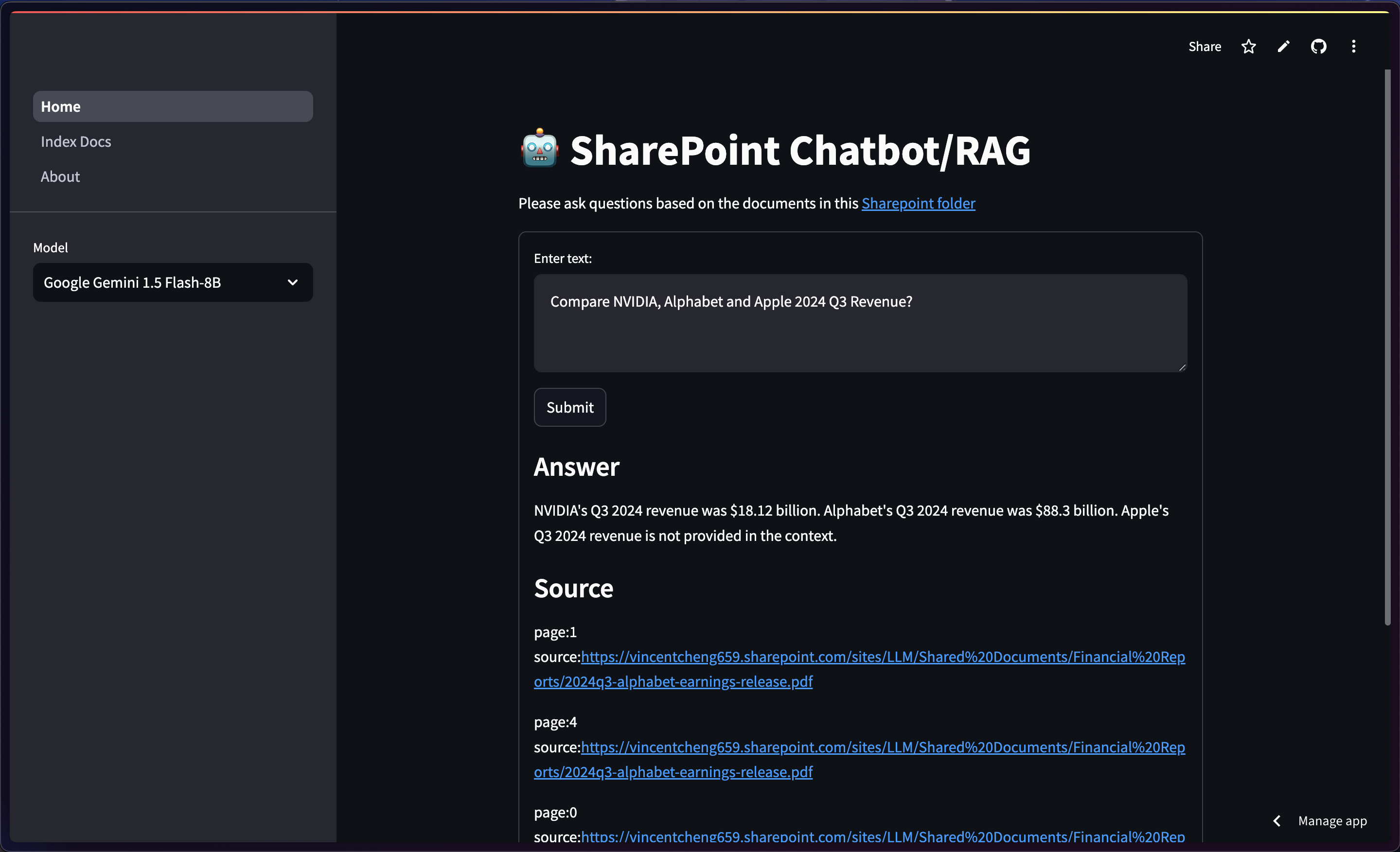

Then, I added the SharePoint folder link and a text box for user to ask the question. Upon clicking Submit, the app will return the answer and source.

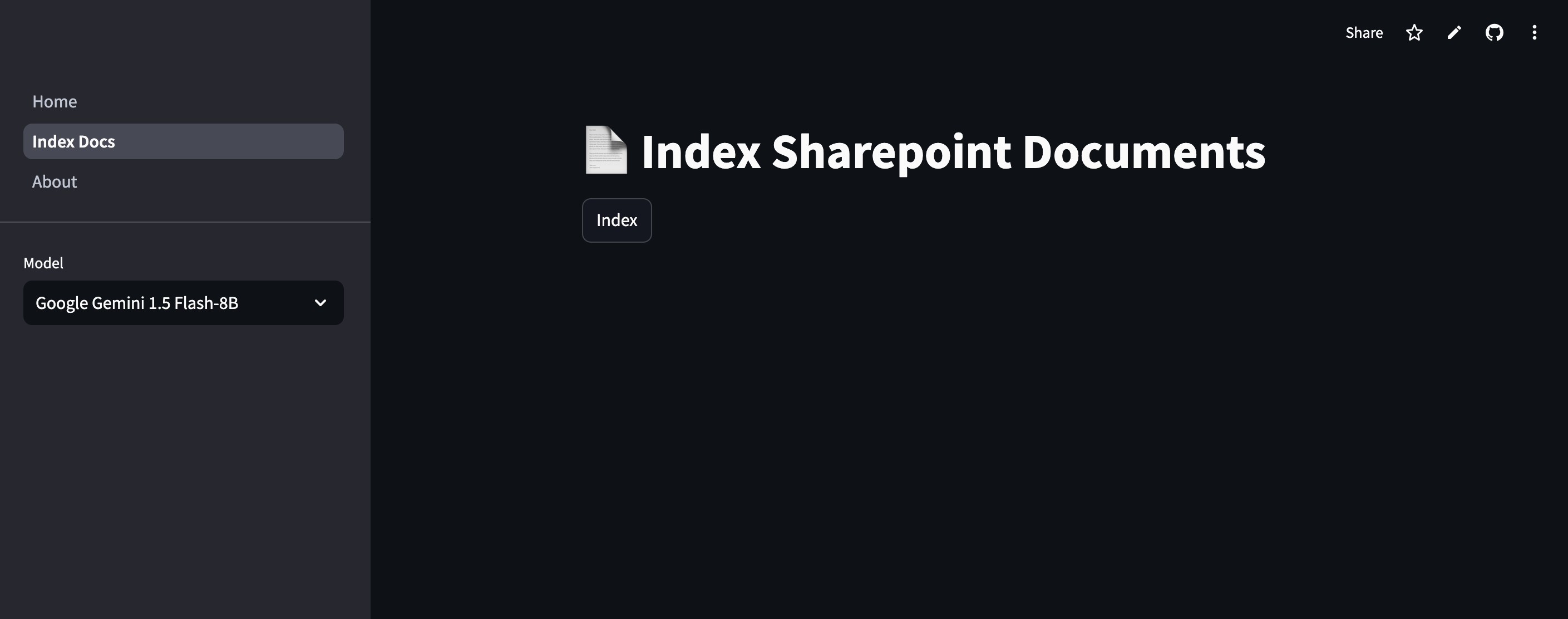

At the Index page, I added the button to index the SharePoint documents based on selected model.

At the About page, I added the documentation for this project.

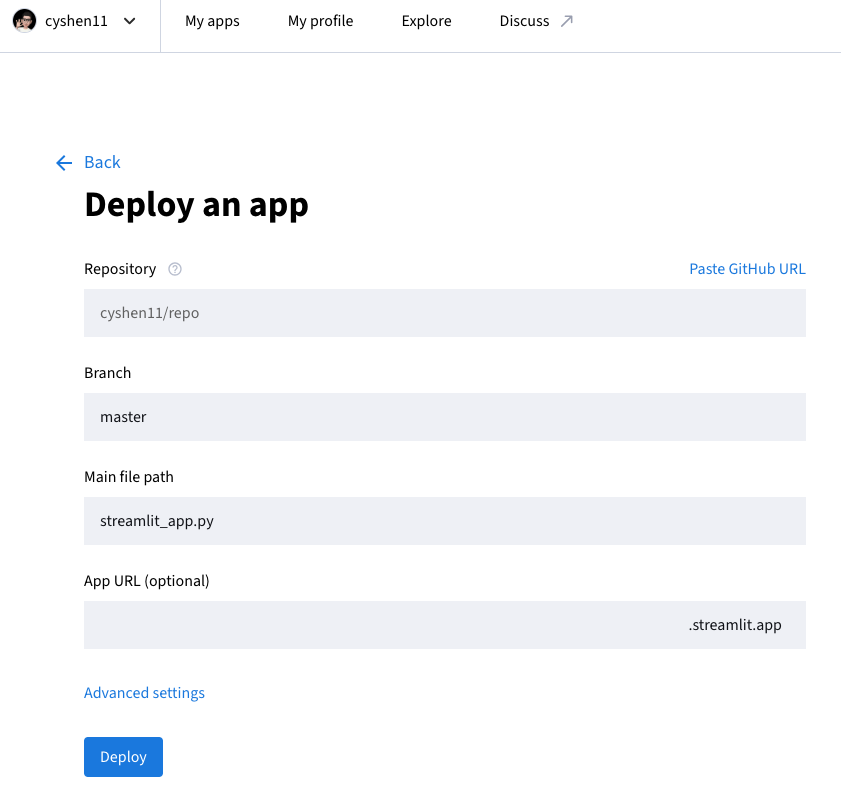

Step 7: Deploying to Streamlit Community Cloud

Lastly, I deployed the app to Streamlit Community Cloud from my GitHub for free hosting. I configured the repo, branch, main file path, python version (3.10) and the Streamlit secrets.

Afterthoughts

Developing an enterprise-facing RAG application requires careful consideration of the entire data pipeline, particularly the choice of vector store and orchestration framework. This one-week sprint provided key insights into the operational challenges of building on a cloud-based stack.

Vector Store Evaluation: MongoBD vs. ChromaDB

Initial development explored using MongoDB Atlas Vector Search due to its scalability potential and unified data platform. However, performance testing revealed integration friction. Integrating MongoDB with the chosen orchestration framework, LangChain/LangGraph, required more complex custom wrappers compared to other native options. This led to a pivot to ChromaDB. The decision was based on its seamless, native integration with LangChain, offering a faster iteration cycle and significantly improved local I/O performance. For an MVP, ChromaDB proved to be the more reliable, low-friction solution.

Orchestration and Architecture

The decision to use LangGraph was strategic. While the current flow is a simple linear chain (Retrieve -> Generate), selecting LangGraph establishes a future-proof architecture. It provides the necessary infrastructure (State Graph) to easily implement complex, agentic behaviors in future enhancements, such as:

• Self-Correction Loops: Allowing the LLM to rewrite a poor query and re-search the documents.
• Tool Calling: Integrating other enterprise tools (e.g., Calendar APIs) into the RAG flow.

Security and Deployment Best Practices

Successfully deploying the application to the Streamlit Community Cloud enforced critical lessons in security and environment management:

• Credential Management: The need to securely handle the Microsoft 365 token via the Path.home() / ".credentials" directory emphasized the importance of rigorous .gitignore practices to prevent credential leakage.

Lessons Learned

• Choosing a vector database is a trade-off between deployment complexity (MongoDB) and development velocity/local performance (ChromaDB).
• LangGraph is the optimal choice for RAG systems where future complexity or agentic behavior is anticipated.
• Robust credential mangement must be prioritized when dealing with enterprise data sources like SharePoint.

Future Enhancements

• Implement advanced search algorithms to improve document retrieval accuracy.
• Improve UI/UX to display available SharePoint documents to the user
• Parse the SharePoint URL to display a clean filename (e.g., 2024q3-alphabet.pdf) instead of the full raw link.

References

• LangChain, Document loaders, Microsoft SharePoint
